The IONIQ 5

Power your world
IONIQ 5

Ultra-fast battery charging

With a 350 kW DC charger, IONIQ 5 can charge from 10 percent to 80 percent in just 18 minutes. According to WLTP cycle, IONIQ 5 users only need to charge the vehicle for five minutes to get 100 km of range.
Long range battery

Long range battery

Fast charging

In the long range battery version (72.6 kWh), IONIQ 5’s 800 V battery system offers the following charging times: 350 kW DC station: charging time approx. 18 minutes from 10 to 80% range added from 5 minutes of charging: 111 km. 50 kW DC station: charging time approx. 61 minutes from 10 to 80% range added from 5 minutes of charging : 28 km
Standard range battery

Standard range battery

Fast charging

In the standard range battery version (58 kWh), IONIQ 5’s 800 V battery system offers the following charging times: 350 kW DC station: Charging time approx. 18 minutes from 10 to 80% Range added from 5 minutes of charging: 88 km. 50 kW DC station: Charging time approx. 45 minutes from 10 to 80% Range added from 5 minutes of charging: 27 km

*WLTP standards

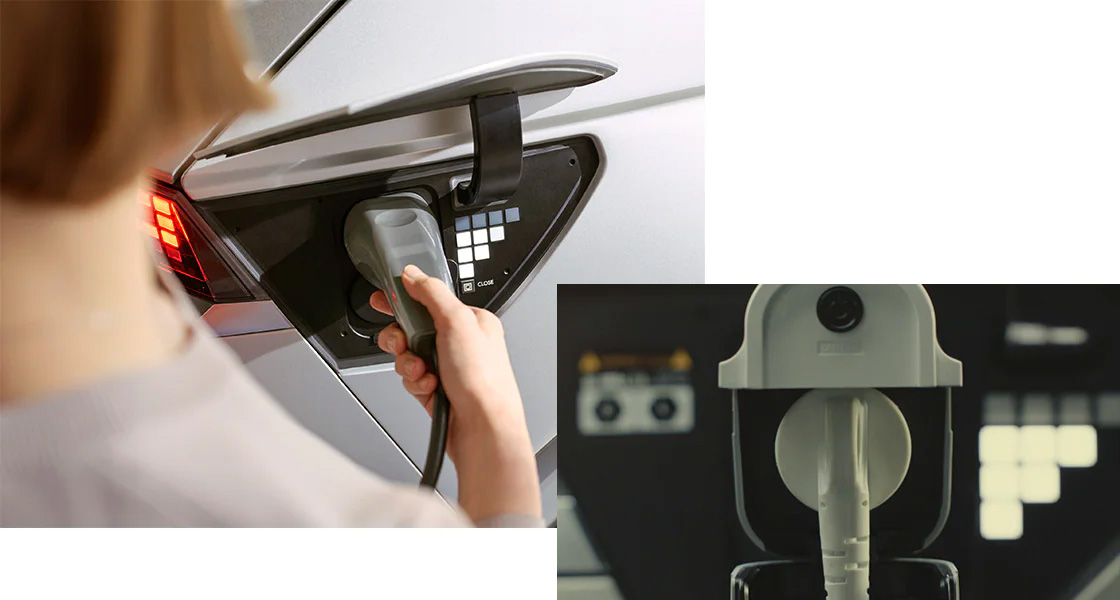

Innovative Vehicle-to-Load (V2L) function

Charge from where you want

Charge from where you want

The car can support both 400 V and 800 V charging infrastructures. The multi-charging system is the world's first patented technology. Using a converter that plugs into the bidirectional exterior charging port, you can power devices up to 3.6 kW even when the vehicle is turned off.

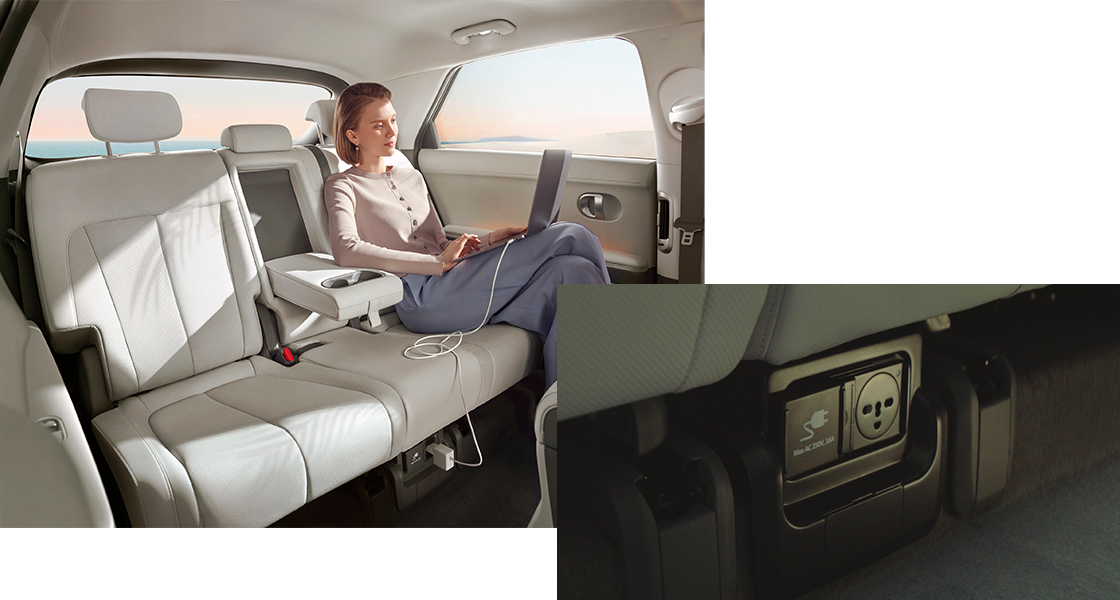

Charge from inside

Charge from inside

IONIQ 5 can make your life easier. It can charge any electric devices such as electric bicycle, scooter, camping equipment, or even a stranded EV. The charging feature is enabled by an adaptor and it connects to the charging outlet. There is a second outlet underneath the back row seat for charging laptops, phones, and other devices.

Register your interest

Fields marked * are mandatory

[Required]

Consent to Use, Hold, Process, Release and/or Disclose Personal Data/Information

Submit
Specification
IONIQ 5 Lite
58 kWh
Plus
58 kWh
Max
72.6 kWh
Price RM 207,808.00 RM 238,408.00 RM 270,408.00
DRIVE TRAIN
Motor Type Permanent Magnet Synchronous Motor (PMSM) 125kW / 70kW+155kW
Battery Capacity 58 kWh 72.6 kWh
Battery Type Lithium-ion Polymer
Max Power kW 125 225 (70+155)
Max Power PS/rpm 170 305 (95+210)
Max Torque Nm/rpm 350 605 (255+350)
Max Speed km/h 185
Acceleration Sport Mode (0 - 100 kmh) 8.5 seconds 5.2 seconds
Drive System RWD AWD
Gear System Single Speed Reduction Gear
Drive Mode 4 (Eco, Normal, Sport & Snow)
All Electric Range km 384km (WLTP) 430km (WLTP)
Charger Type Type 2(AC) / CCS2(DC)
Normal Charging: AC,11 kW(Lite, Plus & Max) 10-80% Approx. 5 hrs Approx. 7 hrs 20 min
Quick Charging: DC, 50 kW(Lite, Plus & Max) 10-80% Approx. 45 minutes Approx. 61 minutes
Quick Charging: DC, 350 kW(Lite, Plus & Max) 10-80% Approx. 18 minutes Approx. 18 minutes
SUSPENSION
Front MacPherson Strut
Rear Multilink
BRAKES
Front Brake Type Ventilated Disc 18"
Rear Brake Type Ventilated Disc 18"
WHEELS & TYRES
Wheels Alloy 19" Alloy 20"
Tyres 235/55 R19 255/45 R20 (Ev)
SAFETY & SECURITY
Airbag 7 (Driver & Side, Driver Centre Side, Front Passenger & Side, Curtain)
ABS, ESC, VSM, BAS, TCS Equipped
Hill-Start Assist Control (HAC) Equipped
Parking Assist System Front and Rear
Seat Belt Reminder 4 (Both Front and Rear Seat)
ISOFIX 2 (Rear Passenger)
HYUNDAI SMARTSENSE
Blind-spot Collision-Avoidance Assist (BCA) Equipped
Blind-spot View Monitor (BVM) N/A Equipped
Rear Cross Traffic Collision-Avoidance Assist (RCCA) Equipped
Lane Keeping Assist (LKA) Equipped
Lane Following Assist (LFA) Equipped
Leading Vehicle Departure Alert (LVDA) Equipped
Smart Cruise Control with Stop & Go (SCC w/S&G) Equipped
Forward Collision-Avoidance Assist (FCA) Vehicle/Pedestrian/Cyclist
Forward Collision-Avoidance Asisst (FCA-JT) Equipped
High Beam Assist (HBA) Equipped
Driver Attention Warning (DAW) Equipped
Rear Occupant Alert (ROA) Equipped
Safe Exit Alert (SEA) Warning Only Active Assist
Manual Speed Limit Assist (MSLA) Equipped
STEERING
Steering Type Rack & Pinion (C-MDPS)
Tilt & Telescopic Standard
DIMENSIONS / CAPACITY
Overall Length (mm) 4,635
Overall Width (mm) 1,890
Overall Height (mm) 1,605
Wheelbase (mm) 3,000
Turning Radius (meters) 5.99
Ground Clearance (mm) 160
Cargo Area(VDA) (minimum / maximum) 527L / 1587L
Curb Weight-Lightest (kg) 1,830 2,020
Curb Weight-Heaviest (kg) 1,910 2,100
Gross Vehicle Weight (kg) 2,370 2,540
Coefficient of Drag (Cd) 0.288
EXTERIOR
Headlamps LED (Multi MFR) Dual LED (Low & High Projection)
Tail lamps LED
LED Daytime Running Light Equipped
Foglamps Rear only (LED)
Outside Mirror Electric Control & Folding Equipped
Flush Door Handle Auto Equipped
INTERIOR
Seats Materials Cloth Leather
Seats Adjustment Driver (8+2 ways electric adjustment) & Front Passenger (Manual) Driver (8+2 ways electric adjustment), Front Passenger (8+2 ways electric adjustment)
Seat Heating and Ventilation N/A Front Seats, 3-step Heated and Ventilated + Heated Rear Seats
Premium Relaxion Seat (Driver & Passenger) N/A Equipped
Rear Seat Folding System 60 : 40 split back folding
Supervision Cluster 12.3 inch Digital Cluster
Parking Brake Electronic Parking Brake with Auto Hold
Inside Rear View Mirror Electronic Chromic Mirror (ECM)
Air Conditioning System Dual Zone Full Automatic
Power Window 4 Windows, Driver's and Front Passenger Side Auto Up and Down with Anti-Pinch
AUDIO
Audio System & Connectivity 12.3" Touchscreen with MP3 playback, AUX-in, USB, Bluetooth, wired Apple CarPlay, Android Auto & Voice Recognition
Speakers 6 Speakers N/A
Bose Premium Sound System N/A 7 Speakers + Subwoofer with Amplifier
Steering Wheel Audio Control Equipped
COMFORT & CONVENIENCE
Surround View Camera N/A Equipped
Smart Key with Push Start Button Equipped with Remote Start
Shift-by-wire (Electronic Shift System) Equipped
Paddle Shifter (Regenerative Braking Control) Equipped
i-Pedal Equipped
Wireless Phone Charging Equipped
USB Port 5 (4 for charging, 1 for connectivity)
Auto Light Control Equipped
Auto Wipers Equipped
Passenger Walk in Device N/A Equipped
Rear Seat Power Adjustment (Slide) N/A Equipped
Advance Tires Pressure Monitoring System Equipped
Cup Holders 2 Front, 2 Rear
Navigation Waze/Google Maps (Android Auto/Apple CarPlay)
  • Specifications, colours, and car shown may differ from those in the brochure and subject to change without prior notice.
  • Some of the specifications illustrated may not be supplied as standard and may be avaiable at extra cost.
  • Smart Phone connectivity is only applicable to selected models. Please check with your smart phone manufacturer regarding to the compatiblity.
  • Android Auto application is only available in certain region.
  • Hyundai-Sime Darby Motors reserves the right to change the specifications and equipments without prior notice.
  • The colour plates shown may vary slightly from the actual colours due to limitations of the printing process.
  • Please consult your respective dealers for full information and availability on colours and trims.
  • Specifications, colours, and car shown may differ from those in the brochure and subject to change without prior notice.
  • Some of the specifications illustrated may not be supplied as standard and may be avaiable at extra cost.
  • Smart Phone connectivity is only applicable to selected models. Please check with your smart phone manufacturer regarding to the compatiblity.
  • Android Auto application is only available in certain region.
  • Hyundai-Sime Darby Motors reserves the right to change the specifications and equipments without prior notice.
  • The colour plates shown may vary slightly from the actual colours due to limitations of the printing process.
  • Please consult your respective dealers for full information and availability on colours and trims.
