Step in, stand out.

The all-new TUCSON.

Tucson

e-Brochure

Step in, Stand out.

The all-new TUCSON signals the start of a new day, and a new way of driving.
Rejecting the ordinary, the all-new TUCSON pushes the boundaries of the segment to reinvent everything.
Outside, Tucson is designed to impress while inside, you’ll discover a level of roominess,
comfort and versatility that exceeds all expectations.

Design that’s thrilling and timeless.

With its 3D parametric-style grille and jewel-like surfaces, Tucson is for trendsetters
with a taste for futuristic design. Adopting a daring new design language we call Sensuous Sportiness
and created with cutting-edge digital design tools, Tucson stands out.

Reason to believe.

The new TUCSON boasts an innovative sporty SUV style, interior space equal to larger vehicles, and advanced technology for your safety, comfort and convenience.

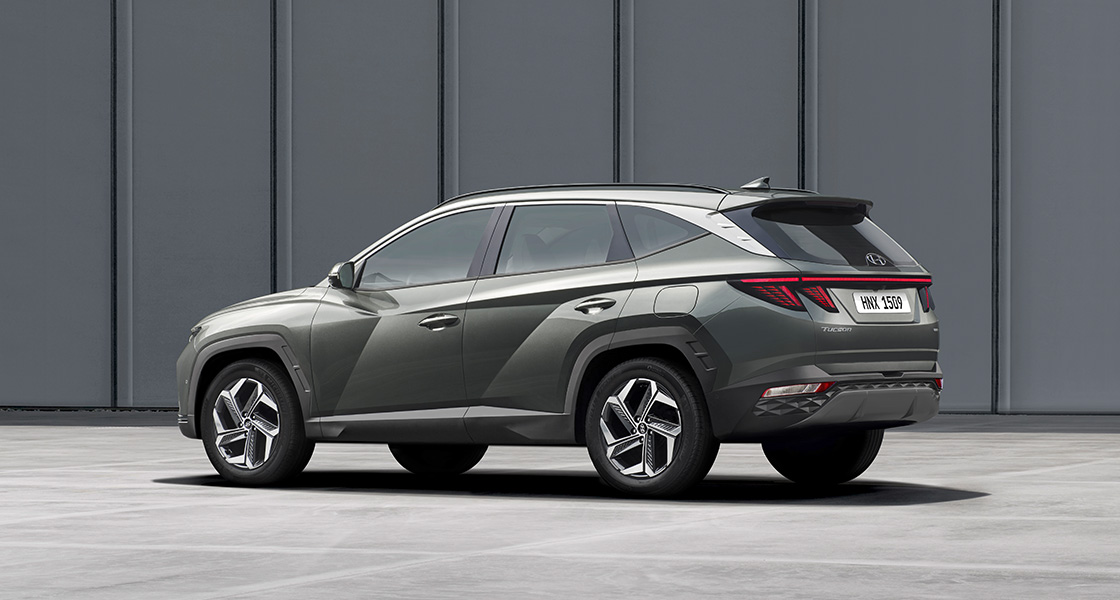

Gallery

360° VR

Exterior colors

Amazon Gray Metallic

* Only available for PLUS & MAX variant.

Register your interest

Fields marked * are mandatory

[Required]

[Required]Location

Salutation

[Required]Full Name

[Required]E-mail: Invalid email address

[Required]Contact No.: Invalid contact number

English | Bahasa Malaysia

Consent to Use, Hold, Process, Release and/or Disclose Personal Data/Information

I have read the terms above and I give consent to Hyundai-Sime Darby Motors Sdn Bhd to process my personal data. I have read the terms above and I give consent to Hyundai-Sime Darby Motors Sdn Bhd to process my personal data.

Submit

Exterior

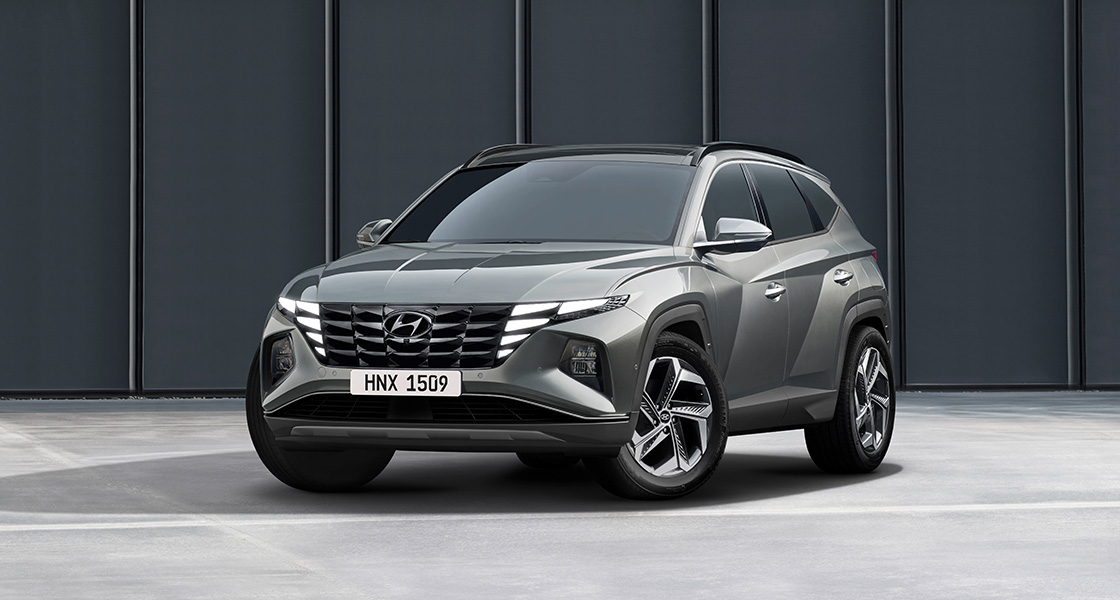

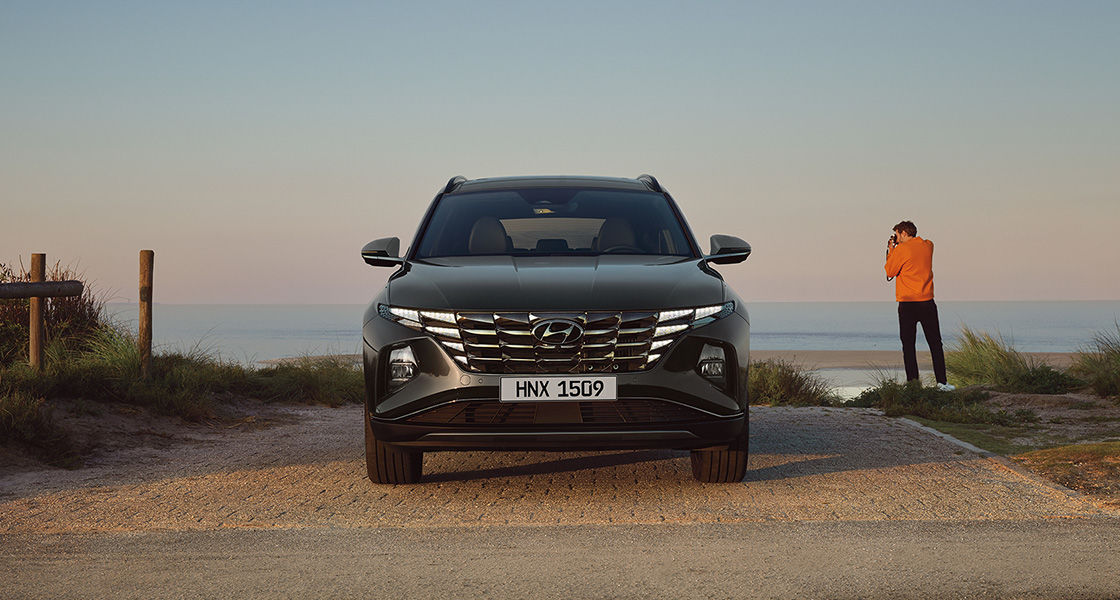

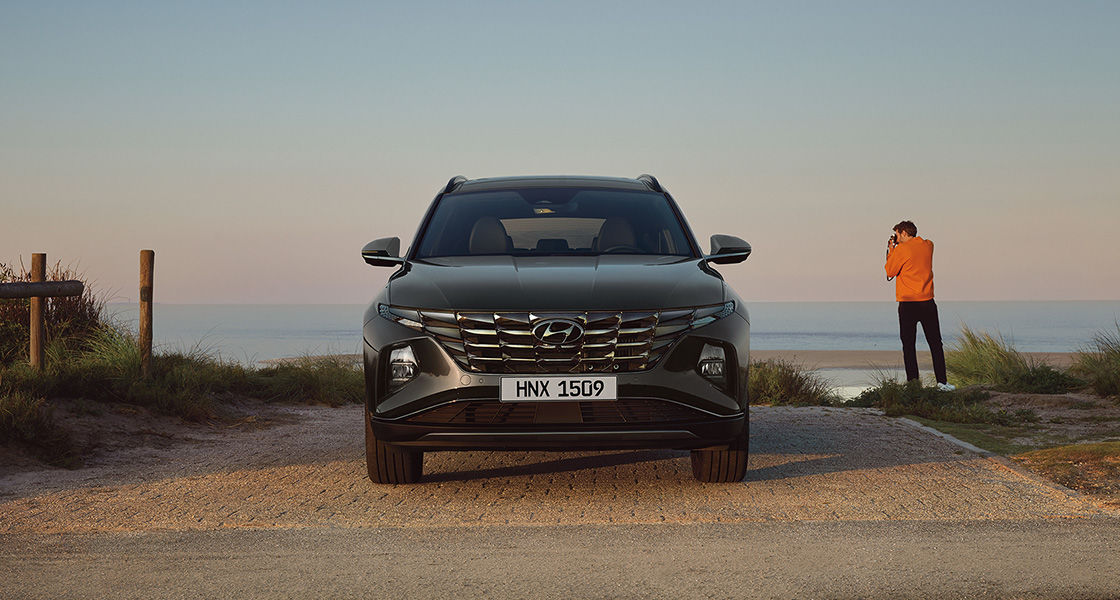

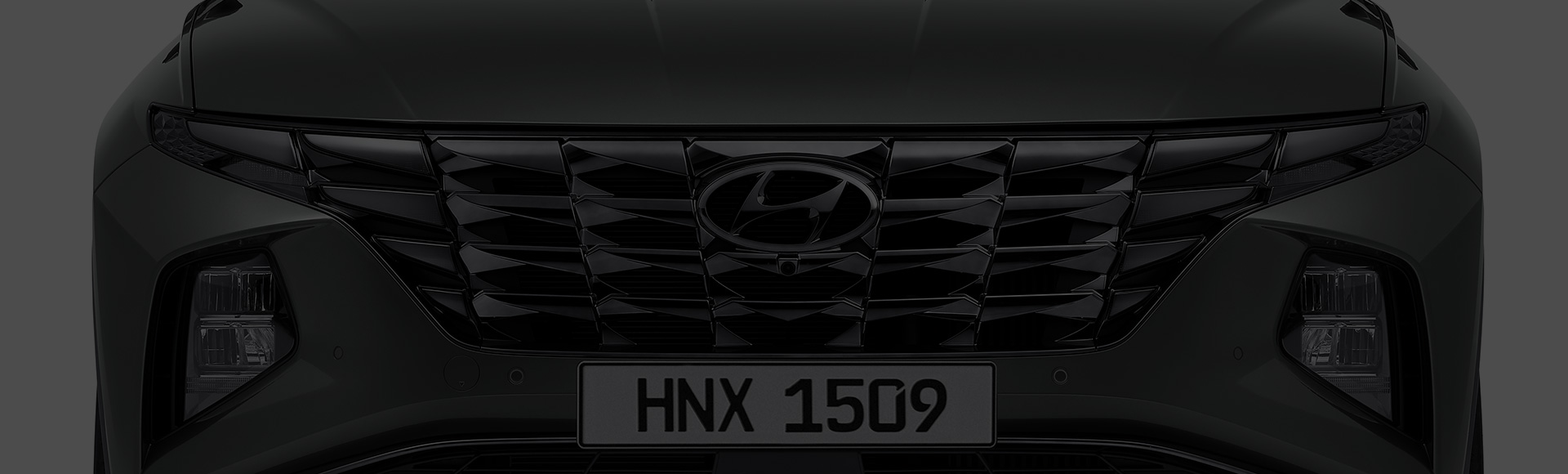

Front

Innovative front style that defines Sensuous Sportiness brings high-tech aesthetics to an SUV for the first time.

DRL OFF

LED MFR headlights

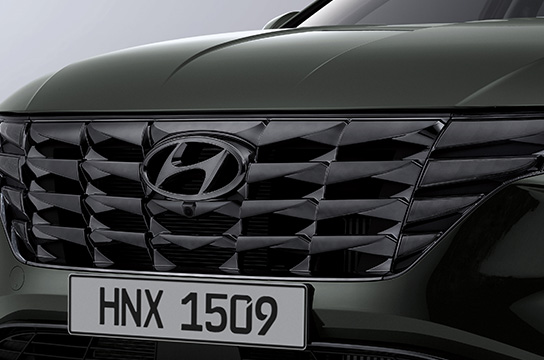

Dark black chrome radiator grille

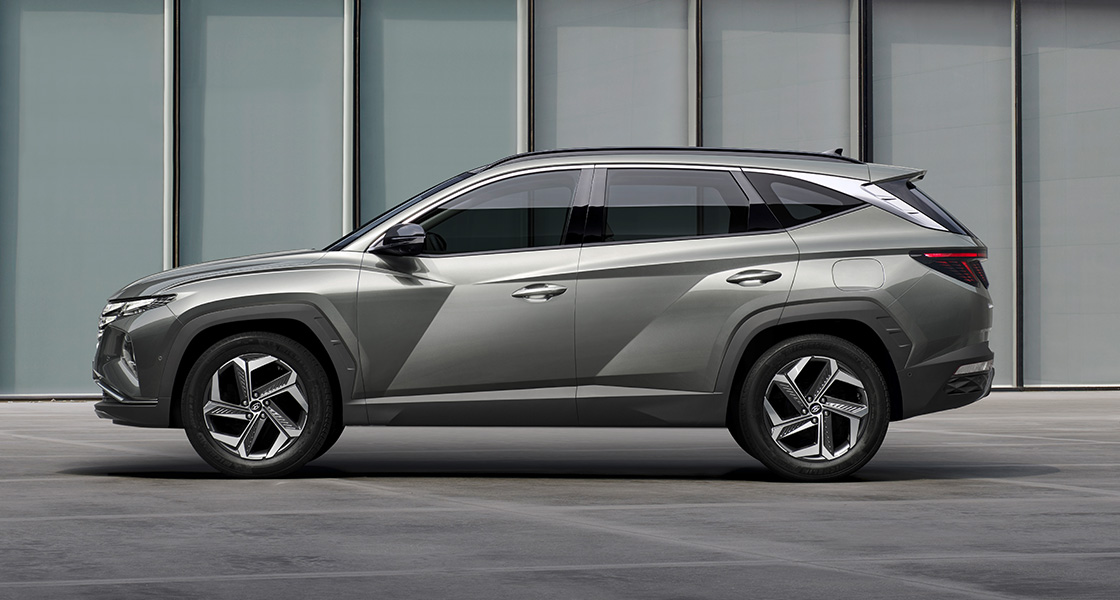

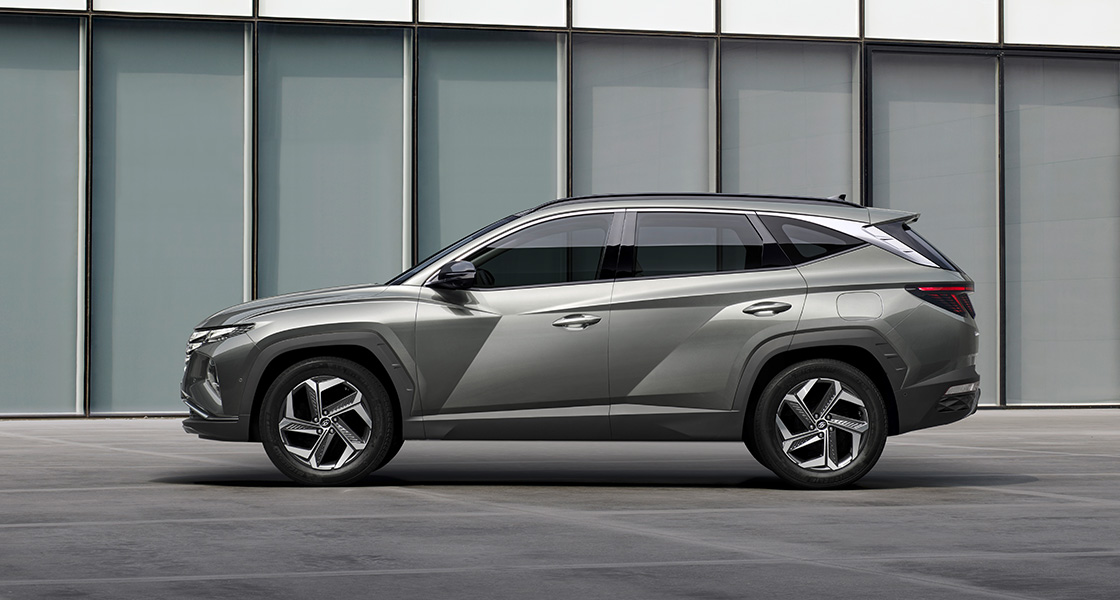

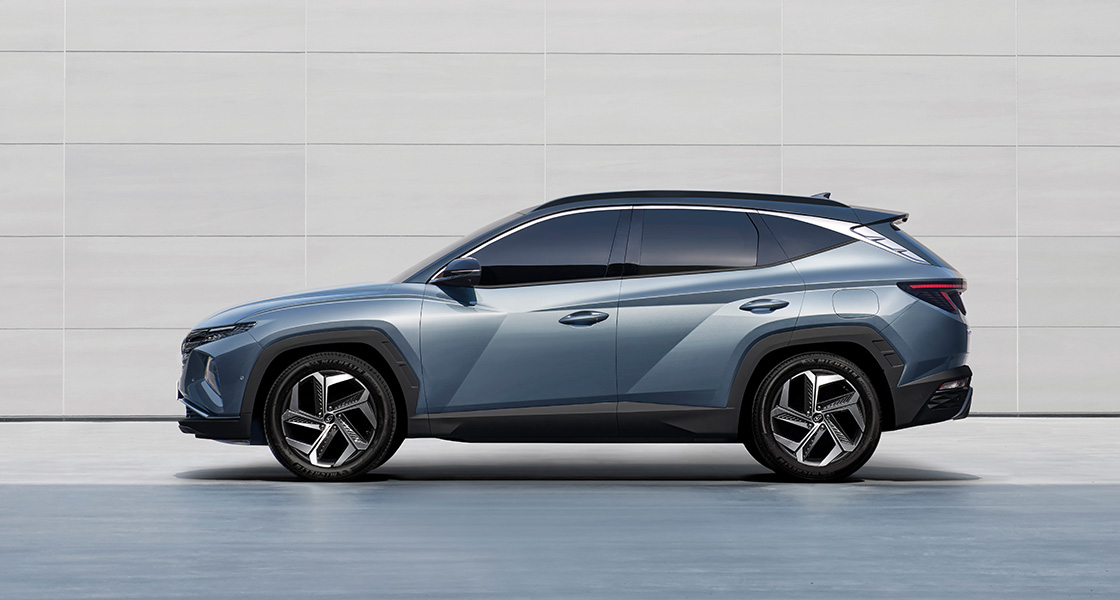

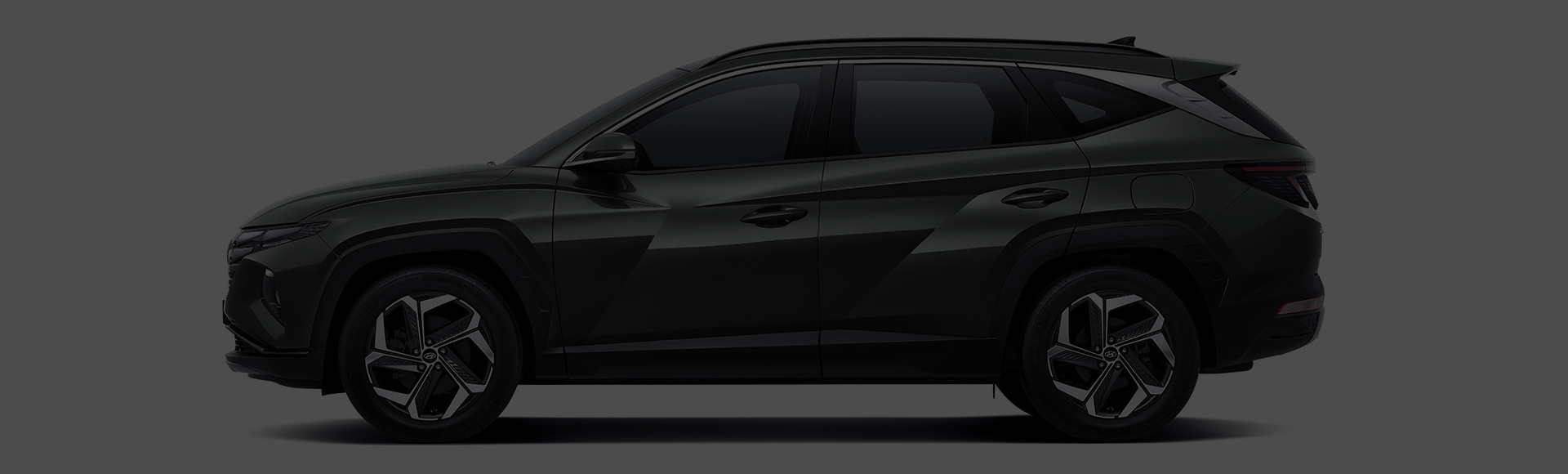

Side

Bold character lines and voluminous wheel arches reinforce the sporty style.

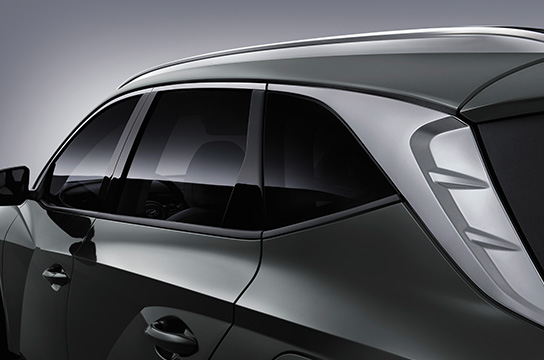

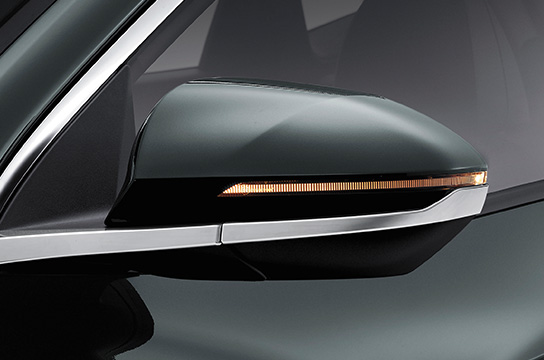

Side mirror with DLO chrome molding

DLO chrome molding roofline

Angular wheel arches

17˝Steel Wheel

17˝Alloy Wheel

18˝Alloy Wheel

19˝Alloy Wheel

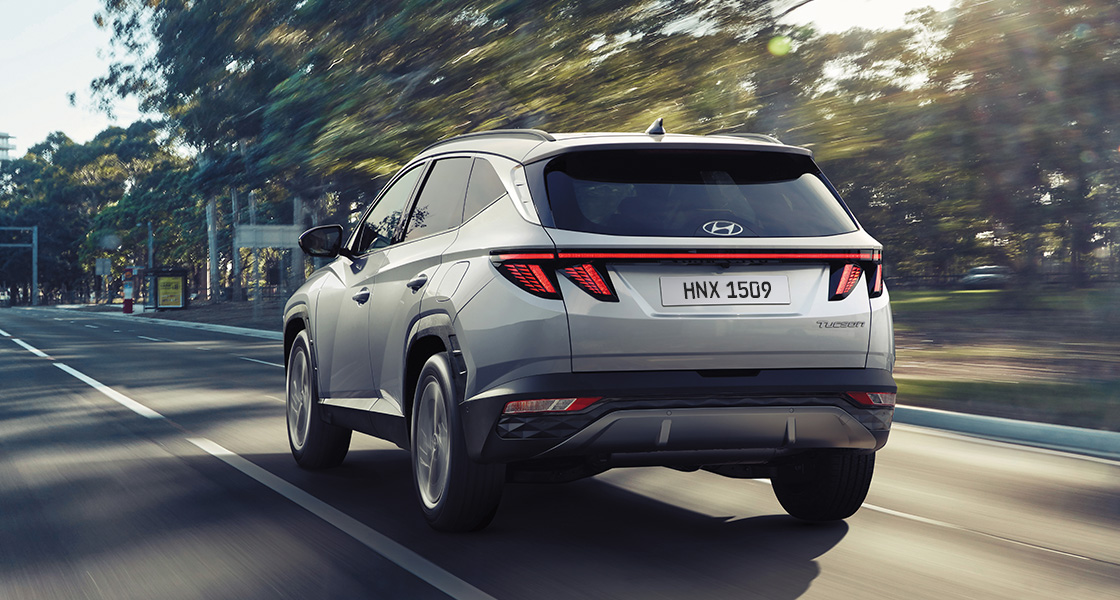

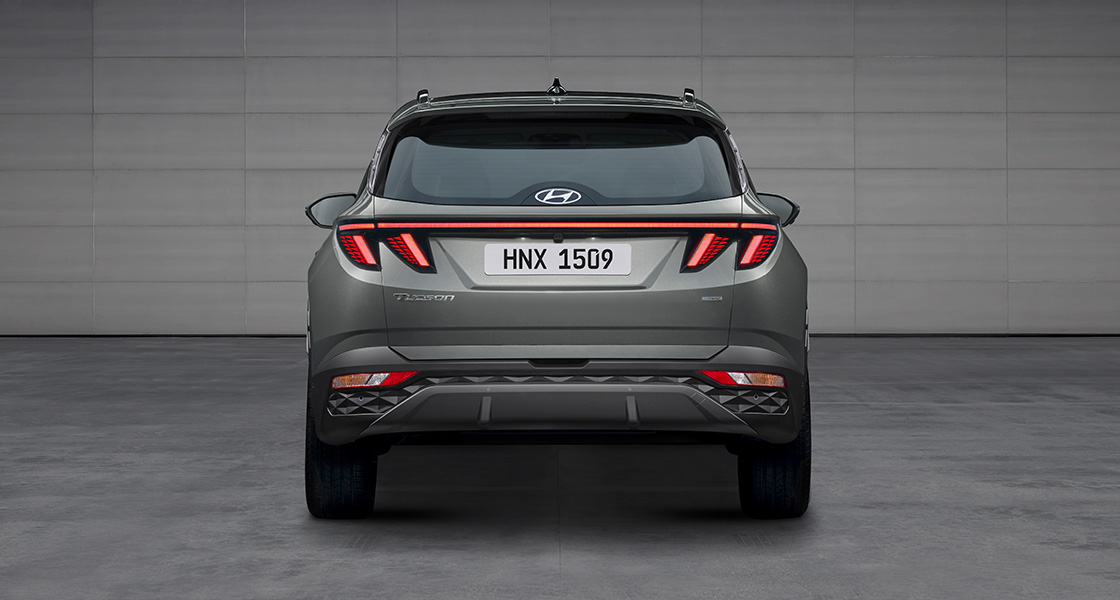

Rear

Wide proportions and full-width rear lights reaffirm Tucson's high-tech image.

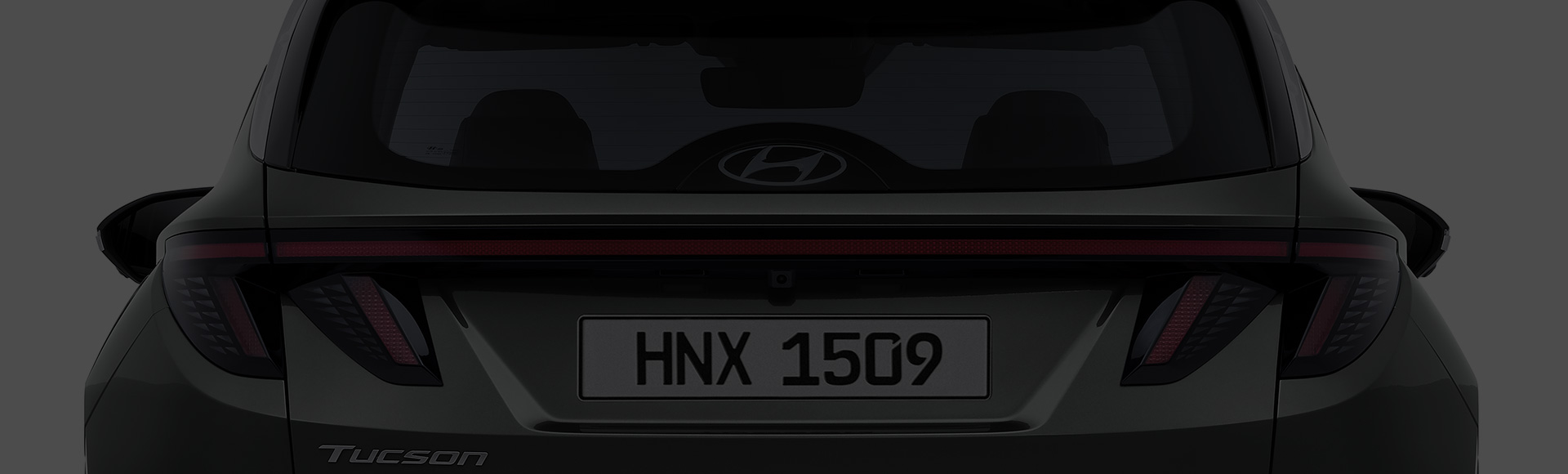

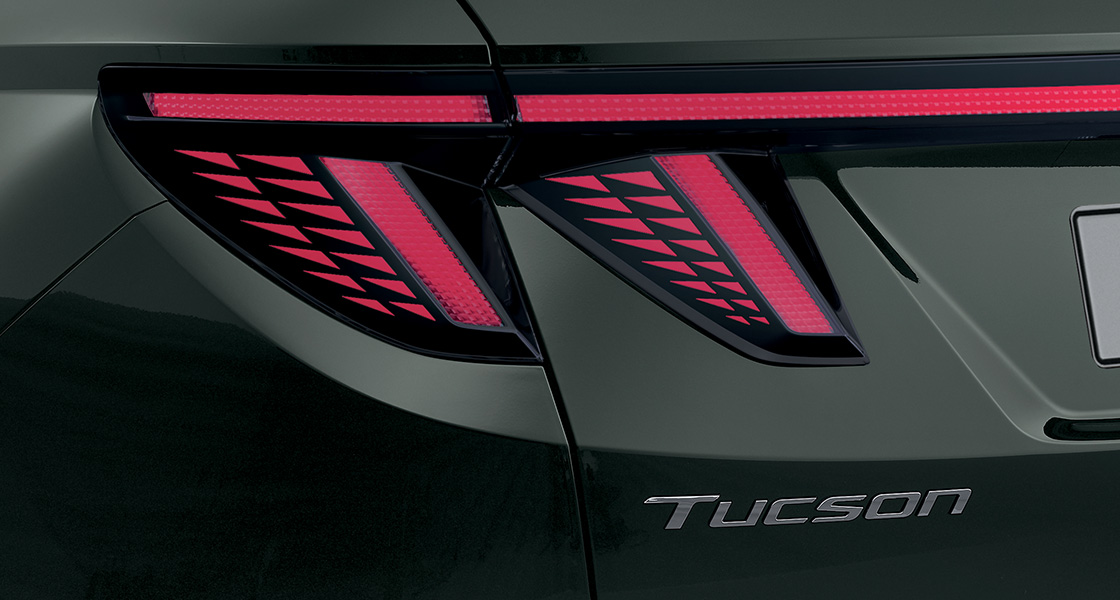

LED rear combination lamps

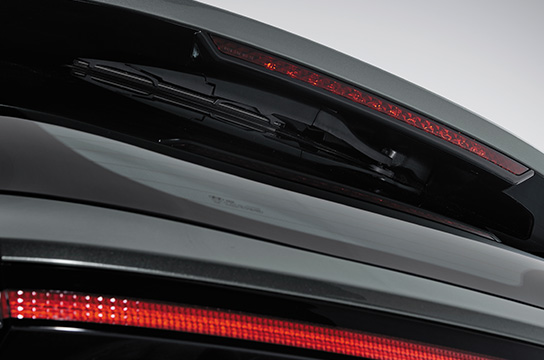

Hidden wiper

Rear logo garnish

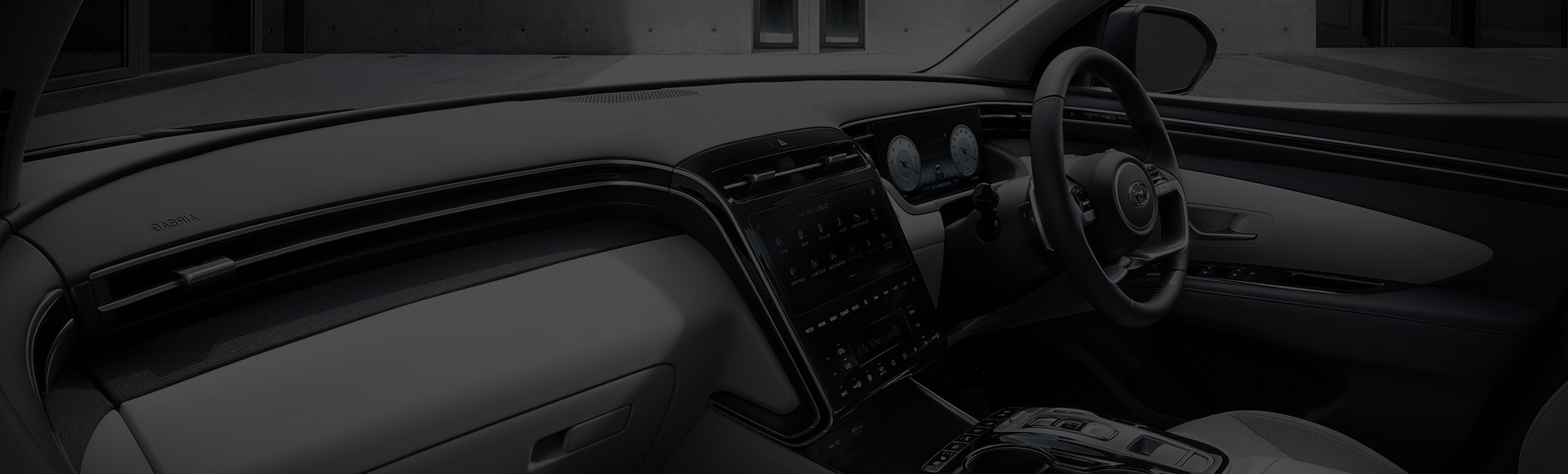

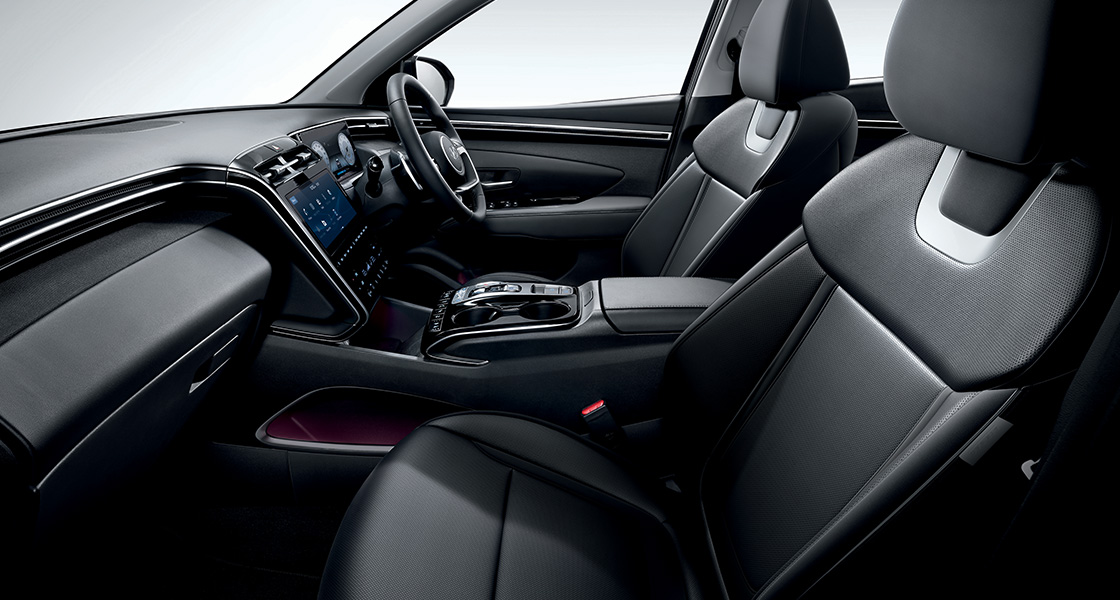

Interior

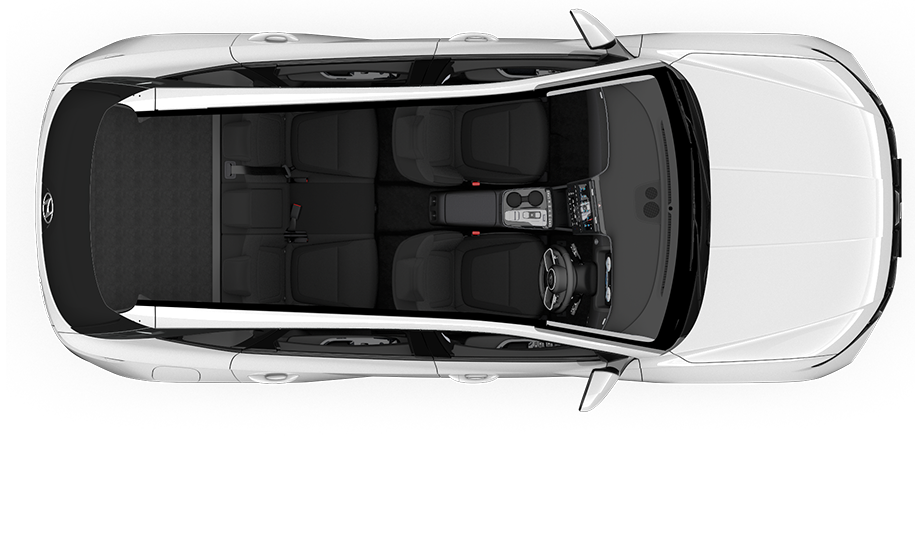

SEAT COLOR

Cloth
Leather

Cloth 1
Cloth 2
Leather

Leather

Leather

Seat materials

Interior Features

8-inch display and full-touch center fascia

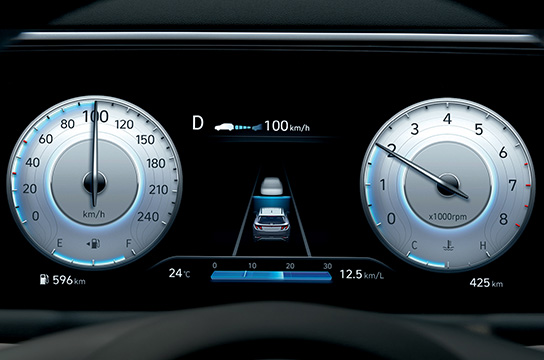

10.25-inch open-type cluster

* Only available for MAX variant.

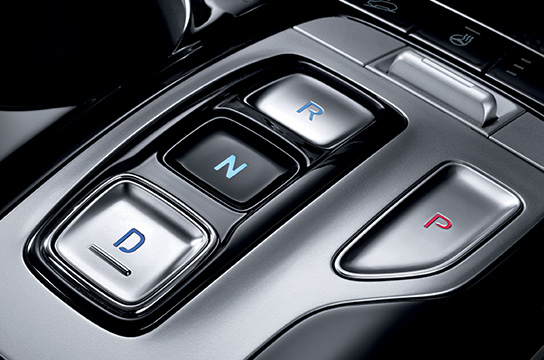

Button-type SBW (Shift-by-wire)

* Only available for PLUS and MAX variant.

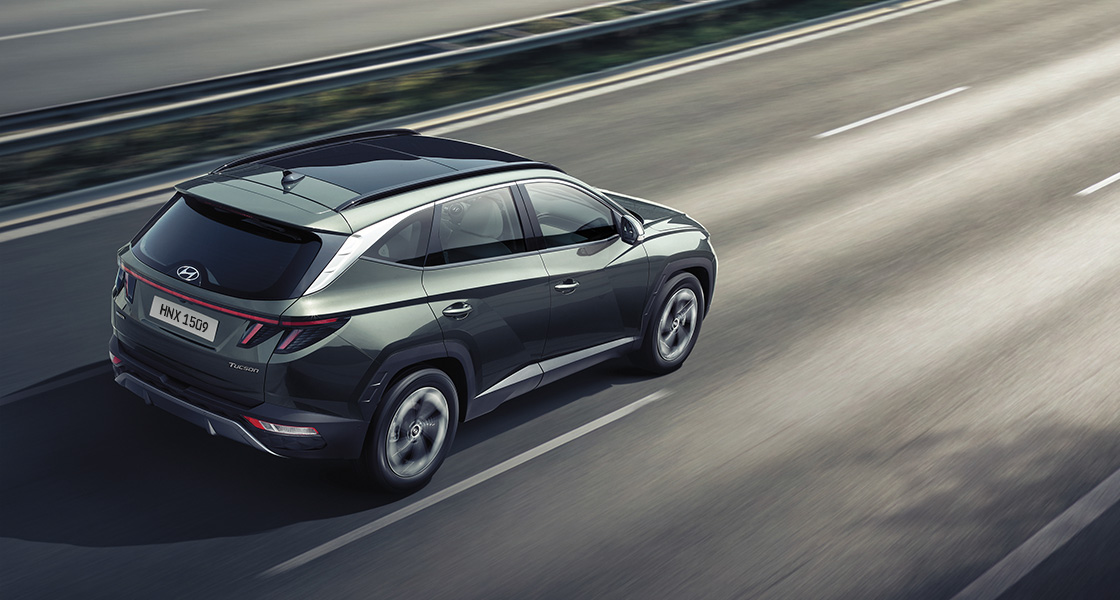

You set the tempo.

Press the accelerator pedal and your pulse rate quickens as Tucson responds with a surge of smooth, quiet power made possible by Smartstream, Hyundai's latest engine technology. You have a choice of two types of efficient and capable powertrains.

Engines

Smartstream Gasoline 2.0

A maximum power of 156ps at 6,200rpm and
a maximum torque of 192Nm at 4,500rpm.

Max. Power: 156 ps

Max. Torque: 192 Nm

A maximum power of 156ps at 6,200rpm and

a maximum torque of 19.6kg∙m at 4,500rpm.

Smartstream Gasoline 1.6T-GDi

A maximum power of 180ps at 5,500rpm and
a maximum torque of 265Nm at 1,500~4,500rpm.

Max. Power: 180 ps

Max. Torque: 265 Nm

A maximum power of 180ps at 5,500rpm and

a maximum torque of 265Nm at 4,500rpm.

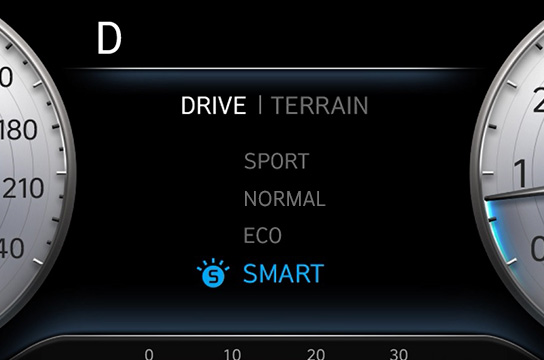

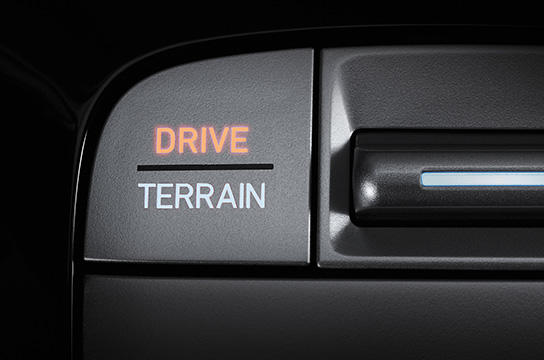

Drive Mode

With Drive mode, you get to pick the style suits you best: NORMAL is for relaxed everyday driving while ECO gives you optimal fuel efficiency.
SPORT is for quicker acceleration, and SMART automatically adjusts gear shift intervals based on an analysis of your recent driving patterns.

The all-new TUCSON offers an improved and expanded range of SmartSense technologies.

Forward Collision-avoidance Assist (FCA)

Analyzing the information of front radar and camera, If the collision with car, pedestrian or cyclist is estimated, Warning signals and automatic braking help a driver to avoid or mitigate an accident.

* Only available for MAX variant.

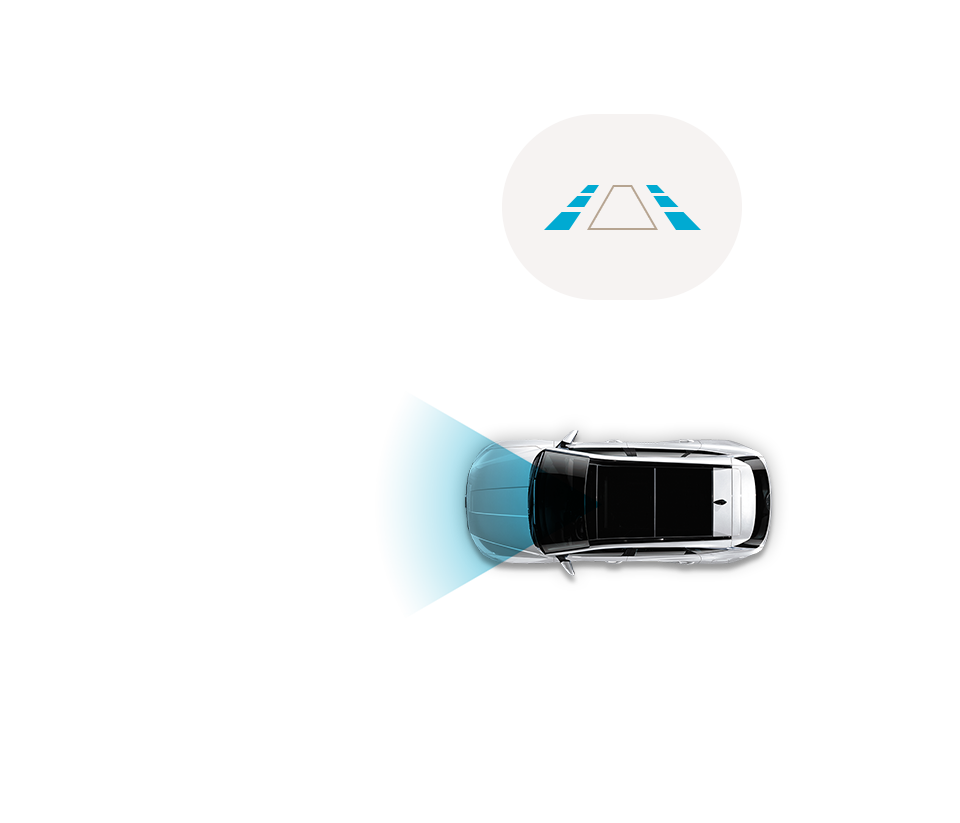

Lane Following Assist (LFA)

Should you drift out of the driving lane without signalling, LFA uses audio and visual cues to alert you to the danger. LFA’s camera constantly monitors the painted lane markings using machine vision to ensure that the vehicle is driven within the lanes. When necessary, automatic steering correction is applied to keep you safely centered in the lane.

* Only available for MAX variant.

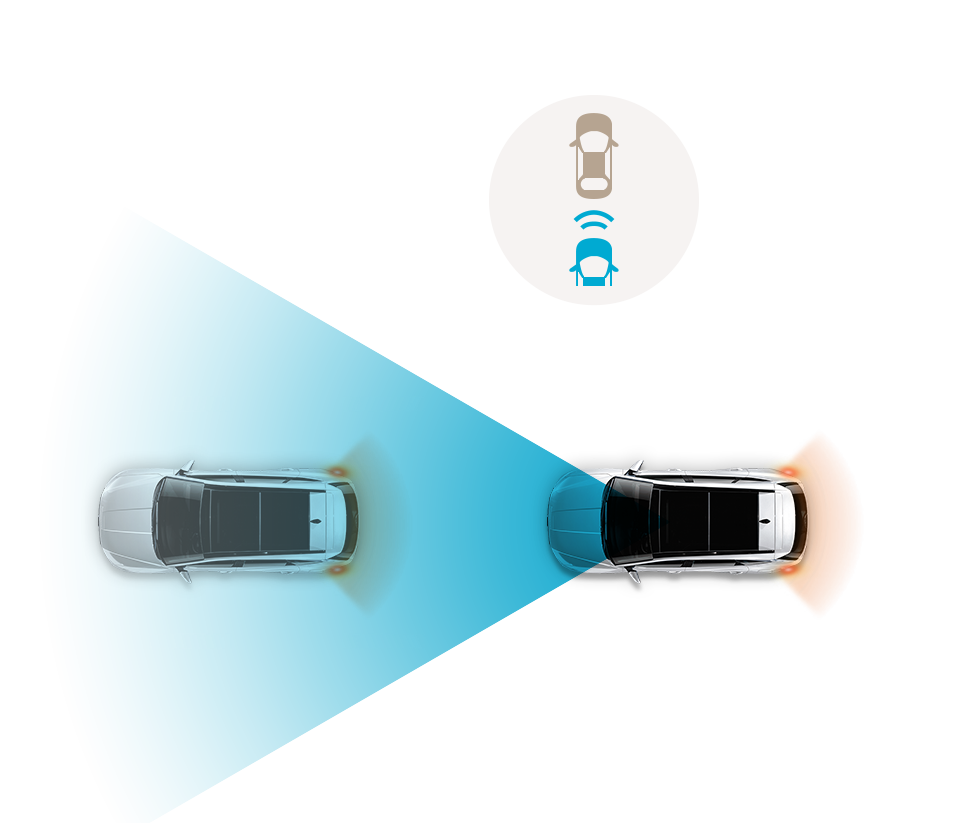

Blind-Spot Collision-Avoidance Assist (BCA)

When operating the turn signal switch to change lanes, if there is a risk of collision with a rear side vehicle, it provides a warning. After the warning, if the risk of collision increases, it automatically controls the vehicle to help avoid a collision.

* Only available for MAX variant.

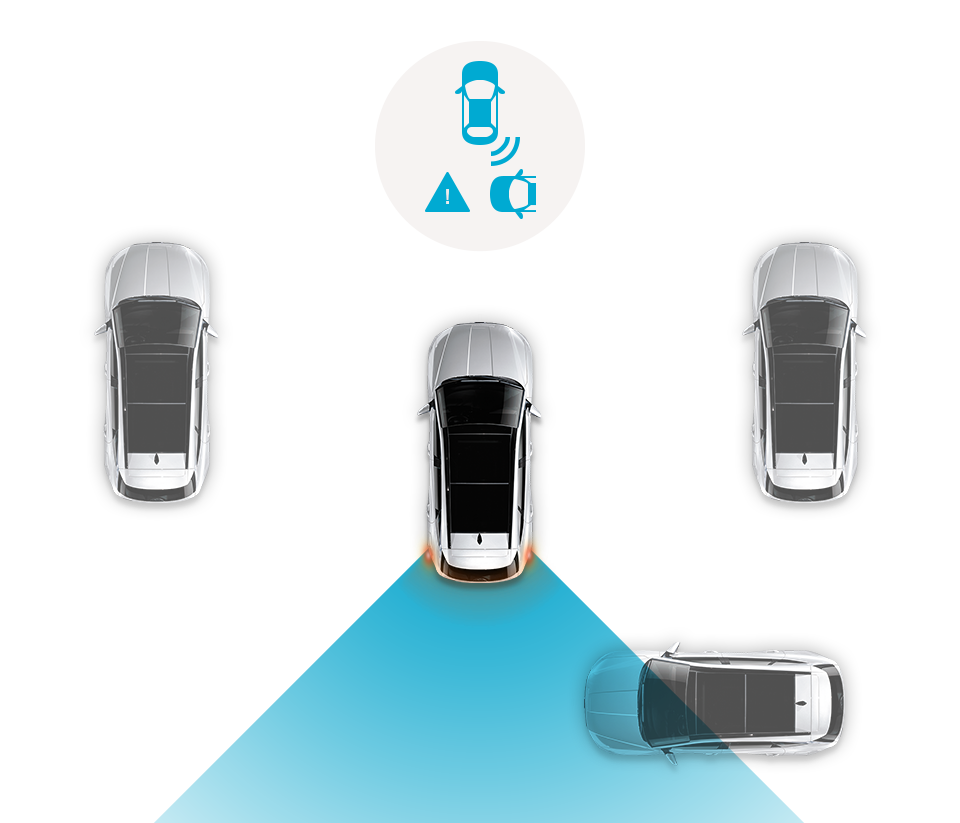

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

The all-new TUCSON warns the driver if a collision risk is detected from the left or right side of the vehicle while reversing. If the risk increases even after the warning, RCCA helps to stop the vehicle.

Play Stop Next

FCA
LFA
BCA
RCCA
END

Ready for anything

The capabilities of Hyundai SmartSense technologies are continually being expanded and improved to make driving ever more safer and easier.

Forward Collision-Avoidance Assist (FCA)

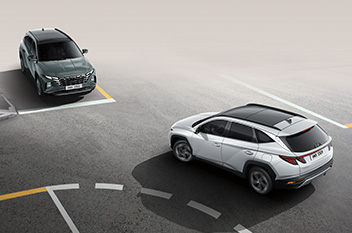

Forward Collision-Avoidance Assist - Junction Turning (FCA - JT)

FCA capabilities have been expanded to include Junction Turning function. While driving if there is a risk of collision with an oncoming vehicle while turning left at an intersection, the function automatically assists with emergency braking.

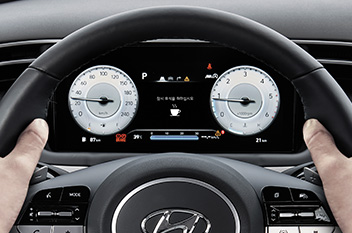

Driver Attention Warning

DAW is a driving safety function that analyzes the driver’s attention level and provides a warning while driving.

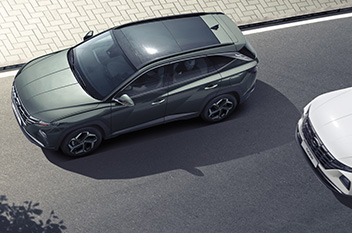

Safe Exit Warning

SEW is a driving safety function that provides a warning when a vehicle is approaching from the rear while an occupant is getting out of the vehicle.

Your digital journey starts here.

Whatever the journey, time seems to fly by when you have a reliable travel companions along for the ride like Tucson’s 8-in infotainment system. The touchscreen is easy to operate and synchs effortlessly with your smartphone to provide you some entertainment and information you need while on the road.

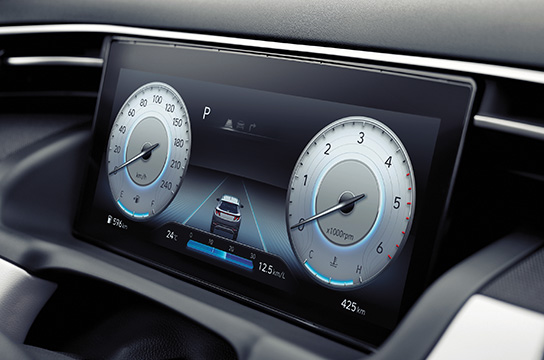

10.25-inch color TFT-LCD cluster

* Only available for MAX variant.

Hyundai Tucson - USB outlets at all seats

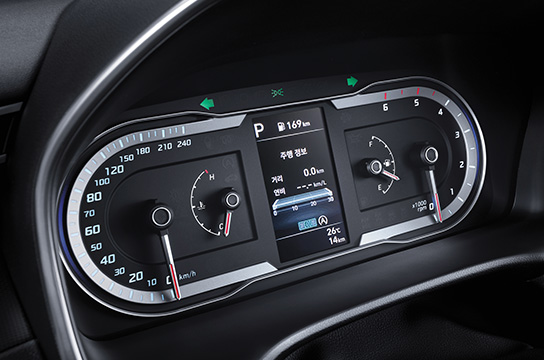

4.2-inch color TFT-LCD cluster

Multi Air Mode

At the press of a button, the air blows gently from a number of different outlets providing a level of comfort and control that is not available in other vehicles.

Hyundai Tucson - Full-auto air conditioning system

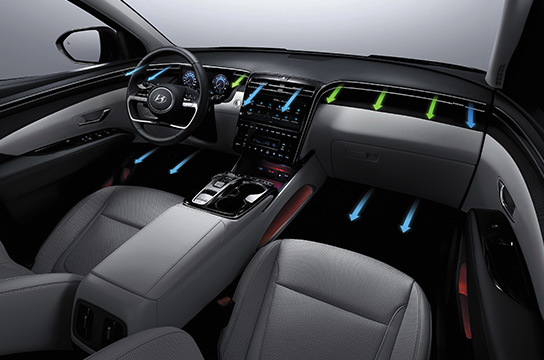

Multi Air Mode Wind intensity direction

Hyundai Tucson - BOSE premium sound system (Premium option)

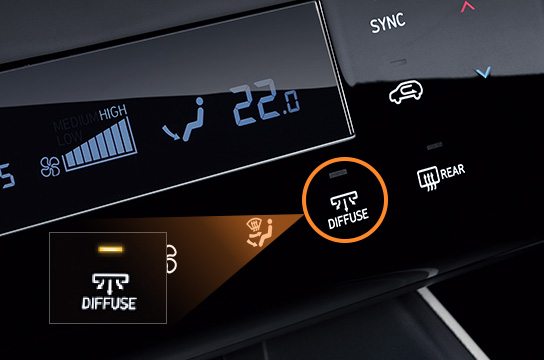

Multi Air Mode button

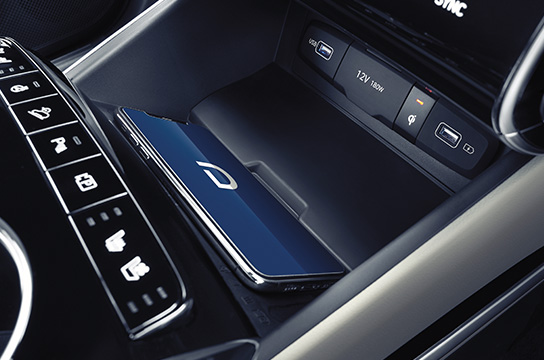

Wireless smart phone charging

High speed wireless smartphone charging incorporates a cooling function to prevent your device from overheating, thus improving convenience and safety.

* Only available for MAX variant.

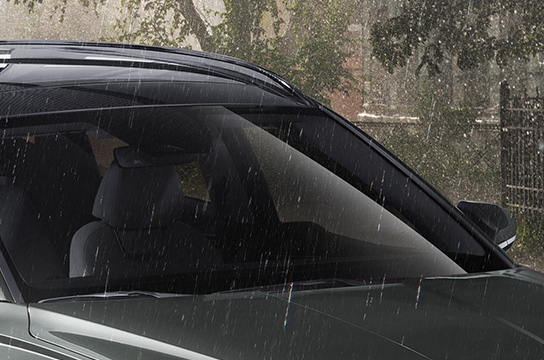

Speed-linked rain-sensing wipers

Operation of the rain sensing wipers is now synchronized with the vehicle speed to offer an extra margin of safety and convenience.

* Only available for MAX variant.

Specification

TUCSON		2.0 Lite	1.6T Plus	1.6T Max
Price		Call Us for Pricing	Call Us for Pricing	Call Us for Pricing
DRIVE TRAIN
Engine		Smartstream G2.0 MPI	Smartstream G1.6 T-GDi
Displacement	cc	1,999	1,598
Bore x Stroke	mm	81.0 x 97.0	75.6 x 89.0
Compression Ratio		10.8	10.5
Max Power	PS/rpm	156 PS / 6200 rpm	180ps / 5500rpm
Max Torque	Nm	192 Nm / 4500 rpm	265Nm / 1500~4500rpm
Max Speed	km/h	181	201
Acceleration (0-100km/h) (sec)		11.4	8.8
Transmission		6 Speed Automatic (Lever Type)	7 Speed Dual Clutch Transmission (E-Shift)
Drive System		2 Wheel Drive (FWD)
DIMENSION
O.A.L (mm)		4,630
O.A.W (mm)		1,865
O.A.H (mm)		1,665
Wheelbase (mm)		2,755
Ground Clearance (mm)		181
SUSPENSION
Front		MacPherson Strut
Rear		Multi Link
BRAKES
Front Brake Type		Ventilated Disc 16"
Rear Brake Type		Ventilated Disc 16"
Electronic Parking Brake		Equipped with Auto Hold
WHEELS & TYRES
Wheels		Alloy 17"	Alloy 19"
Tyres		235/65 R17	235/55 R19
Spare Tyre		Full Size Alloy (235/65R17)	Full Size Alloy (235/55 R19)
SAFETY & SECURITY
Airbag		7 (Driver, Front Passenger, Front Thorax, Side & Curtain)
Anti-lock Braking System (ABS)		Equipped
Electronic Stability Control (ESC)		Equipped
Hill-Start Assist Control (HAC)		Equipped
Child Lock		Manual
ISOFIX		2-Rear Right & Left
Parking Assist System		Reverse		Forward & Reverse
HYUNDAI SMARTSENSE
Cruise Control (CC)		Conventional		Smart Cruise Control (SCC) w/ Stop & Go
Forward Collision-Avoidance Assist (FCA)		-		Equipped (Vehicle / Pedestrian / Cyclist)
Forward Collision-Avoidance Assist (FCA-JT) - Junction		-		Equipped
Lane Keeping Assist (LKA)		-		Equipped
Lane Following Assist (LFA)		-		Equipped
Driver Attention Warning (DAW)		-		Equipped
Leading Vehicle Departure Alert (LVDA)		-		Equipped
High Beam Assist (HBA)		-		Equipped
Blind-Spot Collision-Avoidance Assist (BCA)		-		Equipped
Blind-Spot Collision Warning (BCW)		Equipped
Safe Exit Warning (SEW)		Equipped
Rear Occupant Alert (ROA)		Equipped	Equipped with Motion Sensor
STEERING
Steering Type		Rack & Pinion (C-MDPS)
Tilt & Telescopic		Equipped (Manual)
EXTERIOR
Headlamps		LED MFR
LED Daytime Running Light		Equipped
Tail lamps		Bulb		LED Combination
Roof Rails (Aluminum)		-		Equipped
INTERIOR
Seat Material		Fabric	Leather
Seat Adjustment		Manual Adjustment	Driver Seat 8-Way (with Lumbar Support) + Manual Passenger Seat	Driver Seat 8-Way (with Lumbar Support) + 8-Way Power Passenger Seat
Heated & Ventilated Front Seats (3-Stage)		-		Equipped
Leather Steering Wheel		Leather
Supervision Cluster		Supervision 4.25 inch TFT LCD + RHEOSTAT		Full Digital 10.25 inch TFT LCD + RHEOSTAT
Power Window		Front (Auto Up/Down with Safety)		Front + Rear (Auto Up/Down with Safety)
Boot Space- VDA (ℓ)		582 (Seat-up) / 1,903 (Folded)
AUDIO
Audio System & Connectivity		8" Touchscreen with MP3 playback, AUX-in, USB, Wireless Android Auto & Apple CarPlay with Voice Recognition
Speakers		4 Speakers + 2 Tweeters
Steering Wheel Audio Control		Equipped
Bluetooth Connectivity		Equipped
COMFORT & CONVENIENCE
Smart Key with Push Start Button		Equipped
Remote Start Function		Equipped
Drive Mode Select		Eco, Normal, Sport, Smart
Rear-View Camera		Equipped with Dynamic Parking Guide
Power Outlet		2 (Center Console, Luggage Side)
USB Port		3 (1 x connectivity, 2 x charging)
Navigation		Waze/Google Map (Android Auto/Apple CarPlay)
Air Conditioner		Manual Temp. Control		Dual Zone Auto with Rear Aircond Vent
Power Tailgate		-		Equipped
Electronic Chromic Mirror (ECM)		-		Equipped
Auto Wiper		-		Equipped
Wireless Charging		-		Equipped
Paddle Shift		-	Equipped
Tyre Pressure Monitoring System (TPMS)		-	Equipped

Specifications, colours, and car shown may differ from those in the brochure and subject to change without prior notice.
Some of the specifications illustrated may not be supplied as standard and may be avaiable at extra cost.
Smart Phone connectivity is only applicable to selected models. Please check with your smart phone manufacturer regarding to the compatiblity.
Android Auto application is only available in certain region.
Hyundai-Sime Darby Motors reserves the right to change the specifications and equipments without prior notice.
The colour plates shown may vary slightly from the actual colours due to limitations of the printing process.
Please consult your respective dealers for full information and availability on colours and trims.

Specifications, colours, and car shown may differ from those in the brochure and subject to change without prior notice.
Some of the specifications illustrated may not be supplied as standard and may be avaiable at extra cost.
Smart Phone connectivity is only applicable to selected models. Please check with your smart phone manufacturer regarding to the compatiblity.
Android Auto application is only available in certain region.
Hyundai-Sime Darby Motors reserves the right to change the specifications and equipments without prior notice.
The colour plates shown may vary slightly from the actual colours due to limitations of the printing process.
Please consult your respective dealers for full information and availability on colours and trims.
